CIFA Concrete pumps

❮

❯

K40H

Max. theorical output:

160 m³/h

Boom length:

40 m

Boom sections:

5

Max. vertical reach:

39.1 m

Net horizontal reach:

32.1 m

Min. unfolding height:

8.6 m

Pipeline diameter:

125 mm

❮

❯

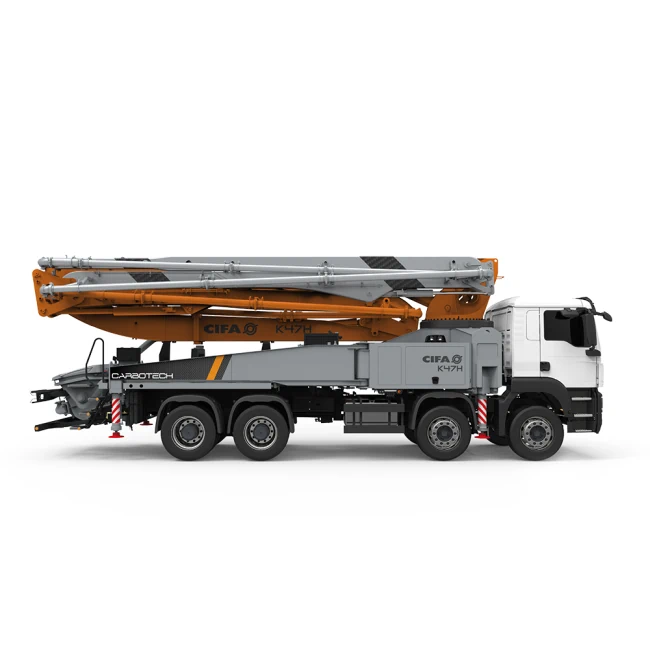

K47H

Max. theorical output:

160 m³/h

Boom length:

47 m

Boom sections:

5

Max. vertical reach:

46.1 m

Net horizontal reach:

38.6 m

Min. unfolding height:

8.9 m

Pipeline diameter:

125 mm

❮

❯

K53H

Max. theorical output:

160 m³/h

Boom length:

53 m

Boom sections:

5

Max. vertical reach:

52.1 m

Net horizontal reach:

43.8 m

Min. unfolding height:

13.9 m

Pipeline diameter:

125 mm

❮

❯

K60H

Max. theorical output:

180 m³/h

Boom length:

60 m

Boom sections:

6

Max. vertical reach:

59.1 m

Net horizontal reach:

49.8 m

Min. unfolding height:

14.2 m

Pipeline diameter:

125 mm

❮

❯

K67H

Max. theorical output:

180 m³/h

Boom length:

67 m

Boom sections:

7

Max. vertical reach:

66.1 m

Net horizontal reach:

55.7 m

Min. unfolding height:

15.4 m

Pipeline diameter:

125 mm

❮

❯

K80H

Max. theorical output:

180 m³/h

Boom length:

80 m

Boom sections:

7

Max. vertical reach:

79.5 m

Net horizontal reach:

68.2 m

Min. unfolding height:

15.66 m

Pipeline diameter:

125 mm

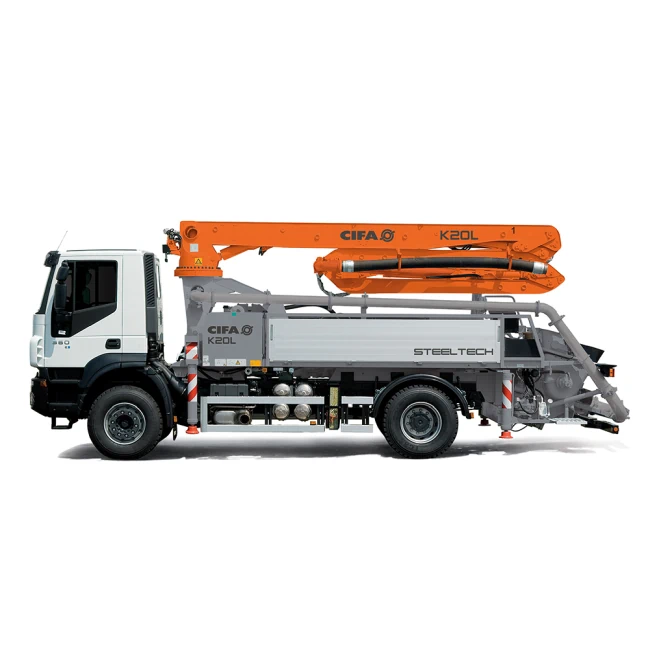

K20L

Max. theorical output:

70 m³/h

Boom length:

20 m

Boom sections:

4

Max. vertical reach:

19.75 m

Min. unfolding height:

3.95 m

Pipeline diameter:

125 mm

❮

❯

K24L

Max. theorical output:

90 m³/h

Boom length:

24 m

Boom sections:

4

Max. vertical reach:

23.59 m

Min. unfolding height:

4.96 m

Pipeline diameter:

125 mm

❮

❯

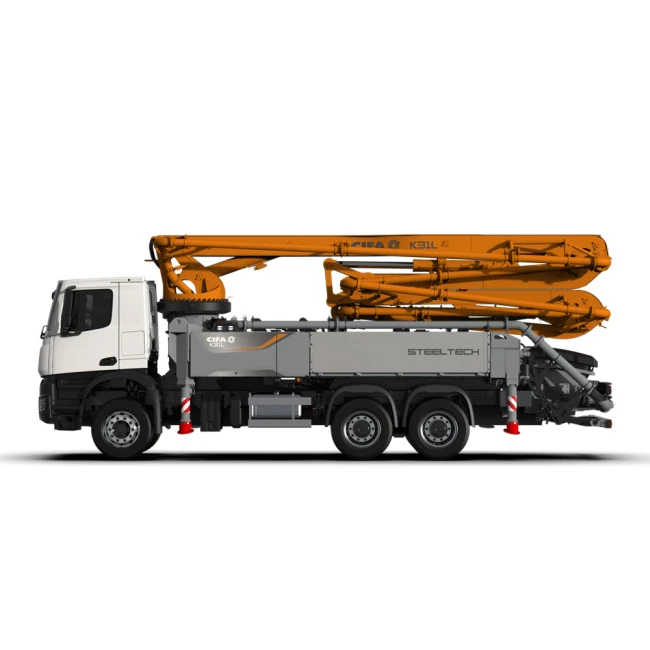

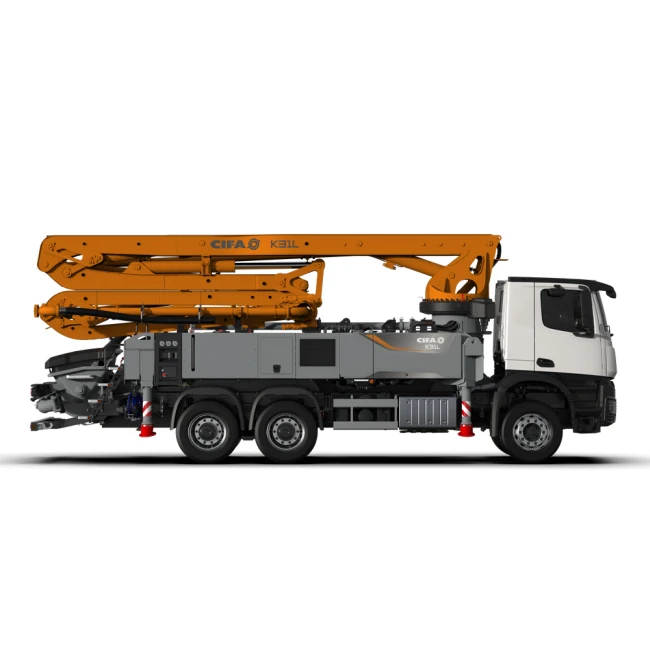

K31L

Max. theorical output:

160 m³/h

Boom length:

31 m

Boom sections:

5

Max. vertical reach:

30.5 m

Min. unfolding height:

5.7 m

Pipeline diameter:

125 mm

❮

❯

K36L

Max. theorical output:

160 m³/h

Boom length:

36 m

Boom sections:

4

Max. vertical reach:

35.6 m

Min. unfolding height:

8.4 m

Pipeline diameter:

125 mm

❮

❯

K36L-5

Max. theorical output:

160 m³/h

Boom length:

36 m

Boom sections:

5

Max. vertical reach:

35.1 m

Min. unfolding height:

7.03 m

Pipeline diameter:

125 mm

❮

❯

K42L

Max. theorical output:

180 m³/h

Boom length:

42 m

Boom sections:

5

Max. vertical reach:

41.1 m

Min. unfolding height:

8.3 m

Pipeline diameter:

125 mm

K50L

Max. theorical output:

180 m³/h

Boom length:

50 m

Boom sections:

5

Max. vertical reach:

49.1 m

Min. unfolding height:

14 m

Pipeline diameter:

125 mm

❮

❯

K56L

Max. theorical output:

160 m³/h

Boom length:

56 m

Boom sections:

5

Max. vertical reach:

55.1 m

Min. unfolding height:

14.4 m

Pipeline diameter:

125 mm

❮

❯

K63L

Max. theorical output:

180 m³/h

Boom length:

63 m

Boom sections:

6

Max. vertical reach:

62.2 m

Min. unfolding height:

15.3 m

Pipeline diameter:

125 mm

❮

❯

RY SERIES

Nominal capacity:

10 - 12 m³/h

Engine:

PTO

Chasis axles:

3 - 4

Height:

2800 mm

Width:

2436 mm

❮

❯

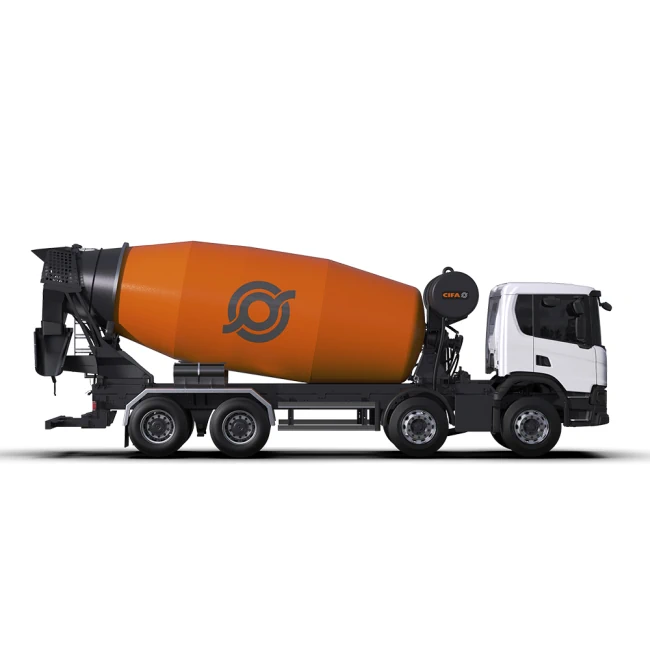

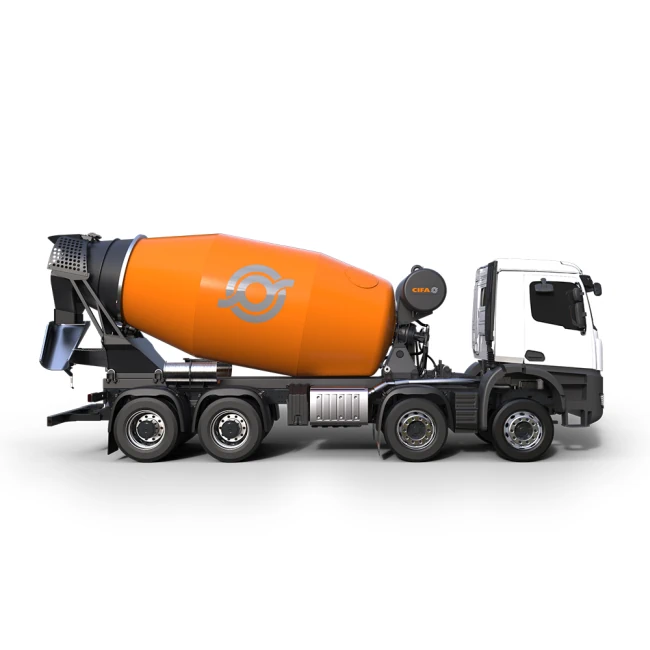

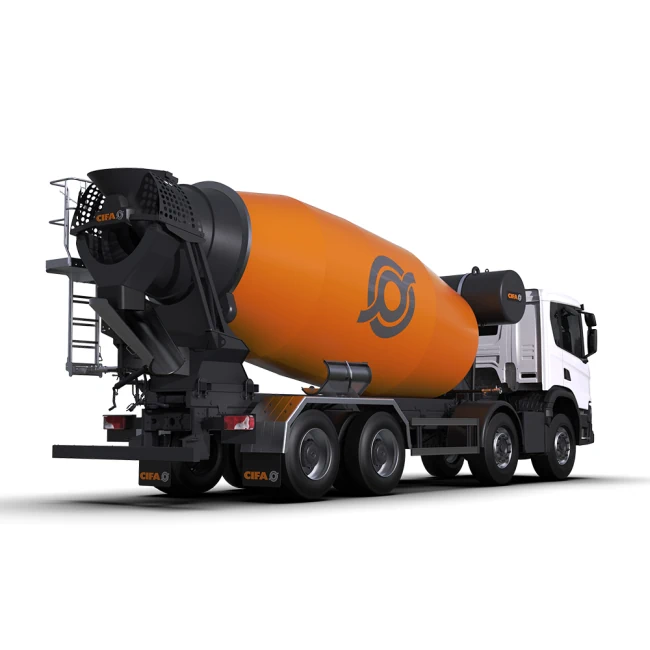

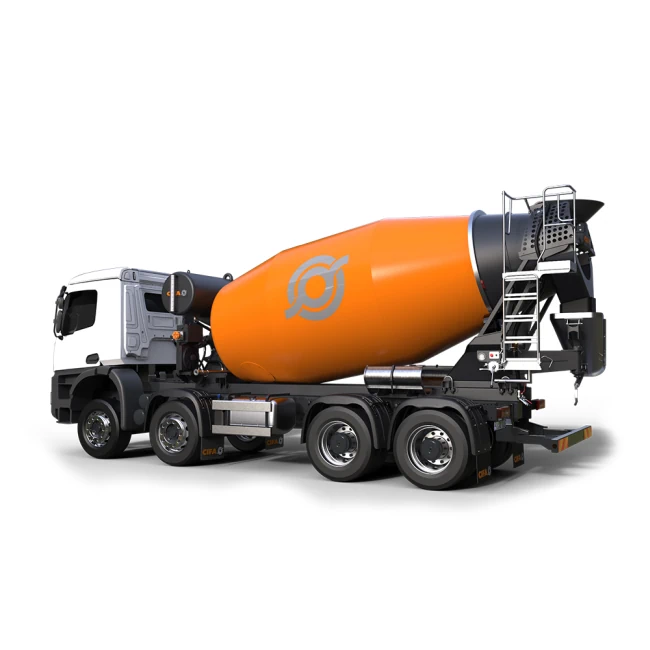

HD SERIES

Nominal capacity:

7 - 15 m³/h

Engine:

PTO Auxiliary engine

Chasis axles:

3 - 5

Height:

2705 mm

Width:

2500 mm

❮

❯

SL SERIES

Nominal capacity:

4 - 15 m³/h

Engine:

PTO Auxiliary engine

Chasis axles:

3 - 5

Height:

2880 mm

Width:

2430 mm

SLX SERIES

Nominal capacity:

8 - 10 m³/h

Engine:

PTO

Chasis axles:

3 - 4

Height:

2770 mm

Width:

2380 mm

MK25H

Max. theorical output:

61 m³/h

Nominal capacity:

7 m³

Boom length:

24.2 m

Boom sections:

4

Max. vertical reach:

24.2 m

Pipeline diameter:

100 mm

❮

❯

MK28H

Max. theorical output:

61 m³/h

Nominal capacity:

7 m³

Boom length:

27.15 m

Boom sections:

4

Max. vertical reach:

27.15 m

Pipeline diameter:

100 mm

❮

❯

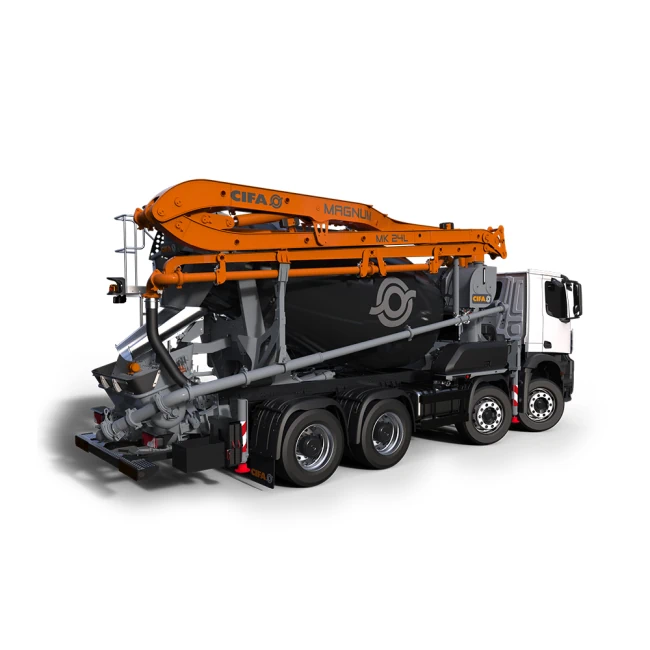

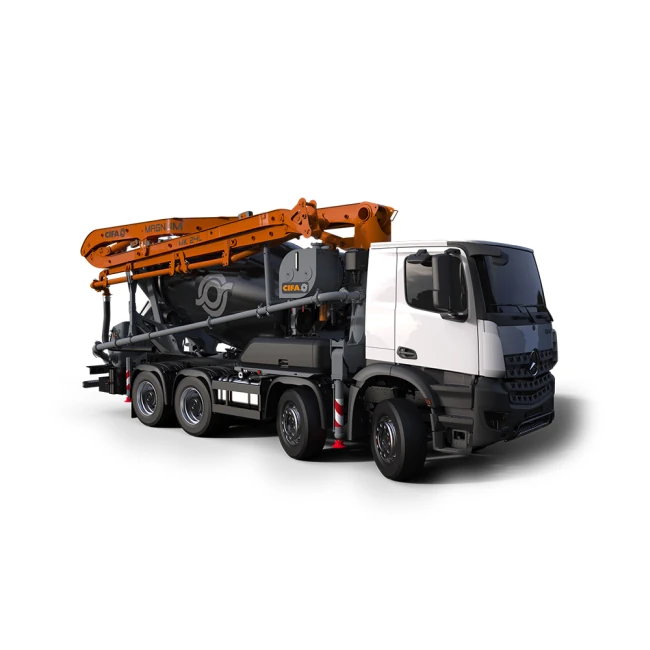

MK24L

Max. theorical output:

61 m³/h

Nominal capacity:

7 m³

Boom length:

23.15 m

Boom sections:

3

Max. vertical reach:

23.15 m

Pipeline diameter:

100 mm

❮

❯

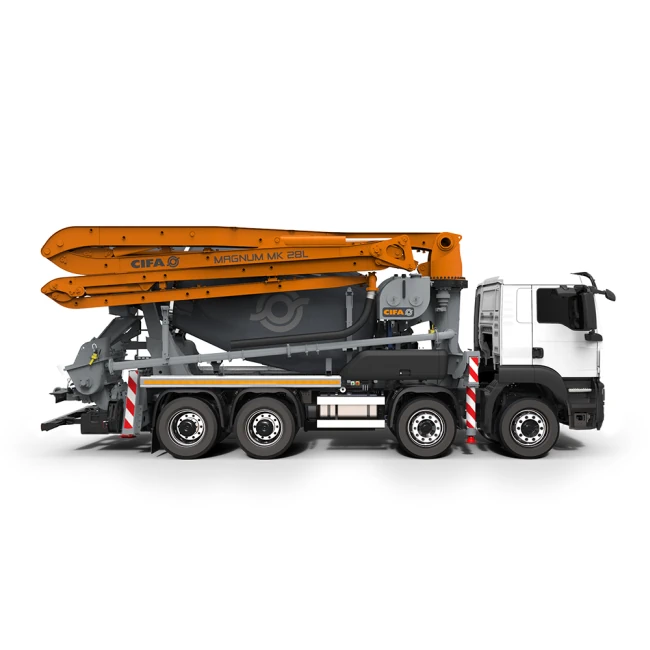

MK28L

Max. theorical output:

61 - 81 m³/h

Nominal capacity:

7 - 9 m³

Boom length:

28.1 m

Boom sections:

4

Max. vertical reach:

28.1 m

Pipeline diameter:

100 mm

MK28L-5

Max. theorical output:

61 - 81 m³/h

Nominal capacity:

7 - 9 m³

Boom length:

28.1 m

Boom sections:

4

Max. vertical reach:

28.1 m

Pipeline diameter:

125 mm

MK32L

Max. theorical output:

61 - 81 m³/h

Nominal capacity:

7 - 9 m³

Boom length:

31.2 m

Boom sections:

4

Max. vertical reach:

31.2 m

Pipeline diameter:

100 mm

❮

❯

Energya K42E

Boom sections:

5

Max. vertical reach:

41.1 m

Pipeline diameter:

125 mm

Max. theoretical output:

160 m³/h

Battery:

Lithium-ion (562 V)

Energya MK28E

Boom sections:

5

Max. vertical reach:

27.15 m

Pipeline diameter:

100 mm

Max. theoretical output:

61 m³/h

Battery:

Lithium-ion (358 V)

Energya E9

Nominal capacity:

9 m³

Width:

2335 mm

Height:

2755 mm

Battery:

Lithium-ion (281.6 V)

❮

❯

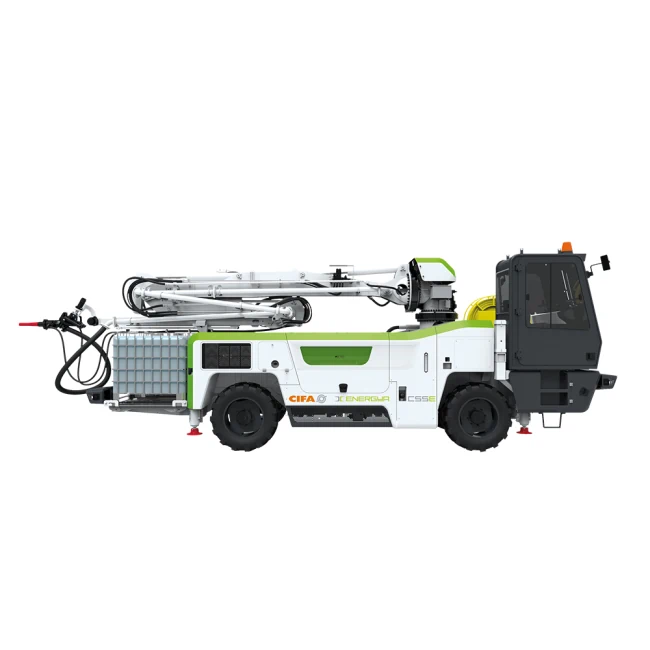

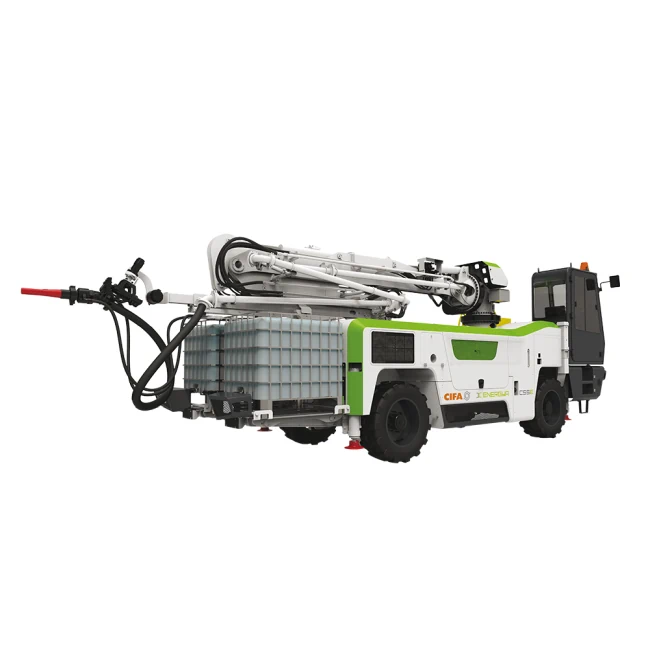

Energya CSSE

Boom sections:

3 + extension

Max. vertical reach:

16 m

Max. theoretical output:

30 m³/h

Battery:

Lithium-ion (96 V)

❮

❯

CST 8.20

Engine:

Diesel

Shotcrete boom:

CST

Pumping unit:

PAS 206

Pumping pressure:

65 bar

❮

❯

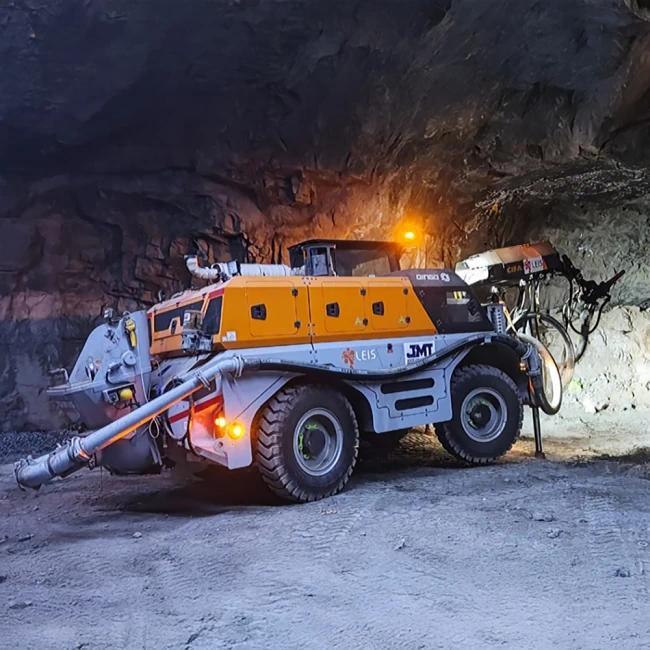

DINGO

Engine:

Diesel

Shotcrete boom:

Dingo

Pumping unit:

PAS 306

Pumping pressure:

60 bar

❮

❯

ELK

Engine:

Diesel

Shotcrete boom:

CSS-3

Pumping unit:

PAS 307

Pumping pressure:

65 bar

❮

❯

MAMBA

Engine:

Diesel / Electric

Shotcrete boom:

MAMBA

Pumping unit:

PS 307

Pumping pressure:

65 bar

❮

❯

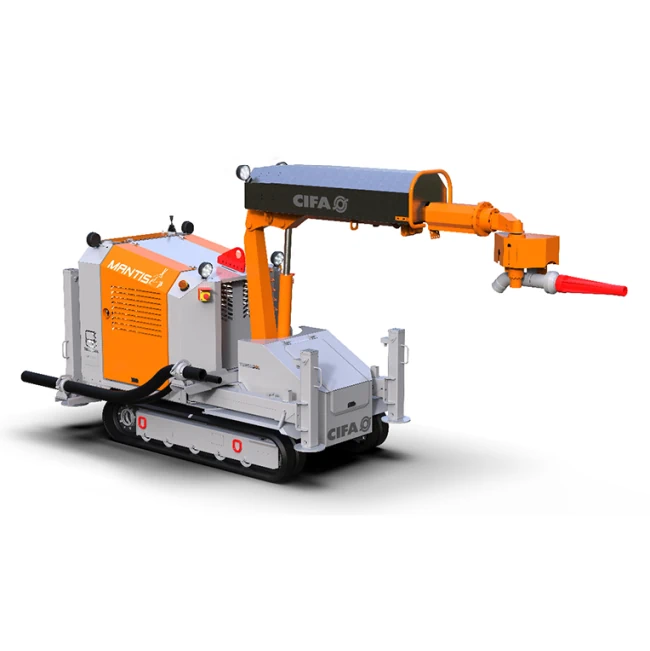

MANTIS

Engine:

Diesel / Electric

Shotcrete boom:

n.d.

Pumping unit:

n.d.

Pumping pressure:

n.d.

❮

❯

RHINO

Engine:

Diesel

Shotcrete boom:

n.d.

Pumping unit:

n.d.

Pumping pressure:

80 bar

❮

❯

COGUARO

❮

❯

MYRIA

PC_158

Hourly production:

15 m³/h

Pumping pressure:

80 bar

❮

❯

PC_307

Hourly production:

30 m³/h

Pumping pressure:

70 bar

❮

❯

PC_506

Hourly production:

34 - 52 m³/h

Pumping pressure:

57 - 91 bar

❮

❯

PC_507

Hourly production:

54 m³/h

Pumping pressure:

71 bar

❮

❯

PC_607

Hourly production:

40 - 60 m³/h

Pumping pressure:

67 - 105 bar

PC_709

Hourly production:

70 m³/h

Pumping pressure:

140 bar

PC_907

Hourly production:

51 - 87 m³/h

Pumping pressure:

66 - 119 bar

PCC_607

Hourly production:

40 - 60 m³/h

Pumping pressure:

67 - 105 bar

PCC_907

Hourly production:

51 - 87 m³/h

Pumping pressure:

66 - 119 bar

❮

❯

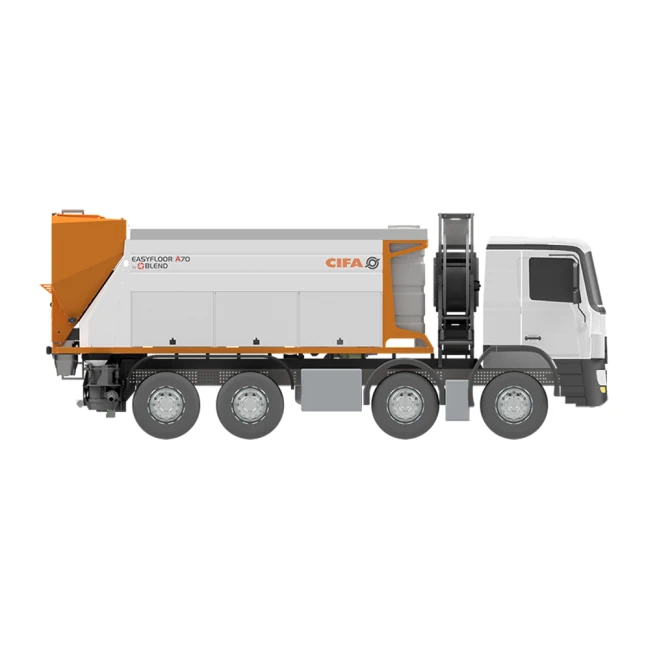

Easyfloor A70

Total power needed:

75 kW

Max theoretical production:

8 m³/h

Max pressure:

6 bar

❮

❯

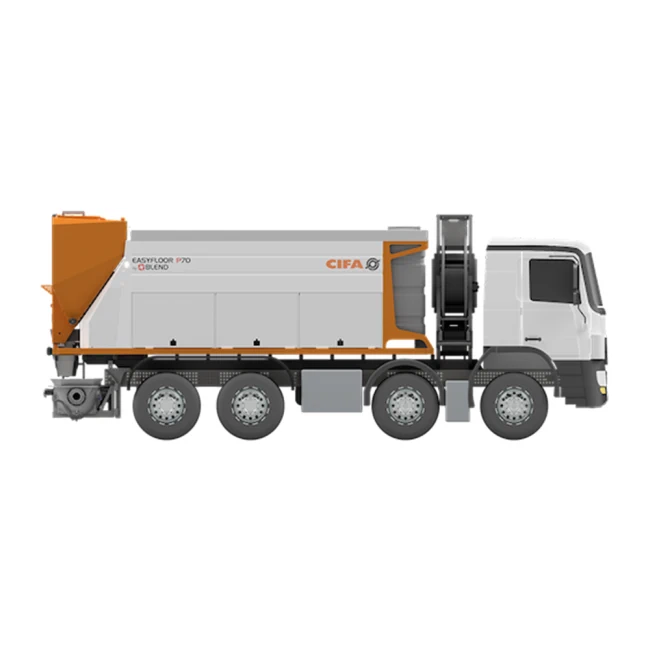

Easyfloor P70

Total power needed:

85 kW

Max theoretical production:

30 m³/h

Max pressure:

50 bar
